FF001 Parts & Exploded View

Identify the component you need using the exploded diagram and FF001 parts list below. Reference the numbered callout when requesting replacement parts or technical support.

01 · IDENTIFY

FF001 Exploded View

Use the callout number in the diagram to identify the component, then match it with the parts list below.

Tip: include your machine photo when contacting support.

Exploded view for FF001 Series component identification. Reference the numbered callout when requesting parts or technical support.

02 · MATCH

Parts List

Match the diagram number to the component name. Keep the number handy when you contact MECSIL.

01Rotating drum

02Locking pin

03Bolt lock reel

04Guide ring

05Center spacer

06Shaft, wire coil

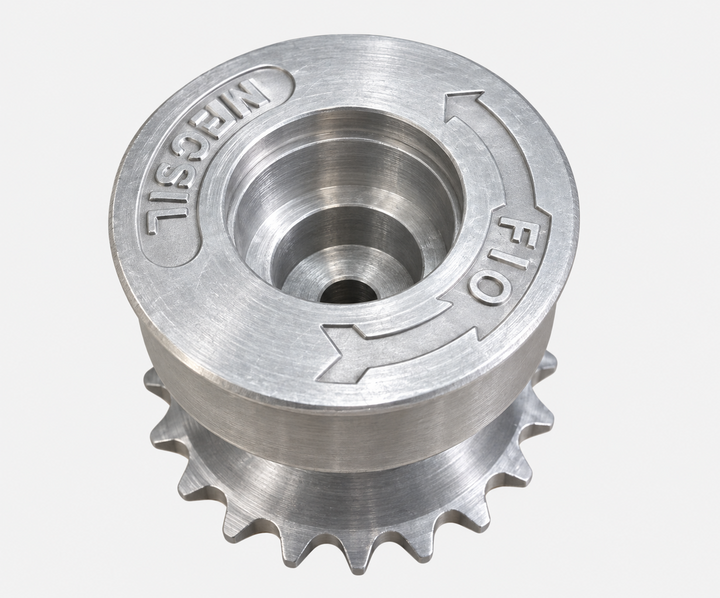

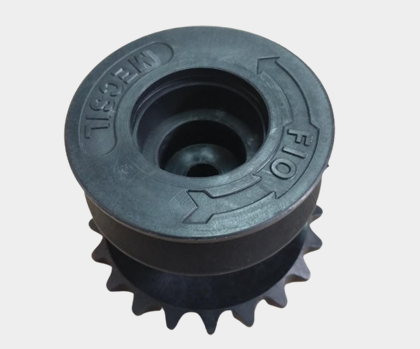

07Drive gear

08Shaft, drive gear

09Lashing wire exit guide

10Halo guard

11Dust cover, drive gear

12Retainer clip, drive gear

13Rear plate assembly

14Strand roller (rear)

15Vertical roller knob and screw

16Rear strand lock knob and screw

17Rear strand locking bar

18Vertical roller left and right

19Locking pin rear gate

20Rear gate

21Lashing wire roller guide

22Wire coil cover

23Wire coil inner hub

24Front plate assembly

25Strand roller (front)

26Front strand lock

27Front gate assembly

03 · BRAKE-EQUIPPED MODELS

Brake Mechanism Assembly

Components 28–34 apply to FF001 configurations equipped with the brake mechanism. Item 33 is the dedicated front strand roller used on brake-equipped FF001 models.

28–34

28Brake Actuation Gear with Pin

29M6 × 25 Hex Head Bolt

30Brake Eccentric Cam

31Brake Lock Assembly with Ø5 × 16 Spring

32Brake Actuation Lever

33Front Strand Roller – Brake-Equipped FF001 Models

34Brake Mechanism Cover
